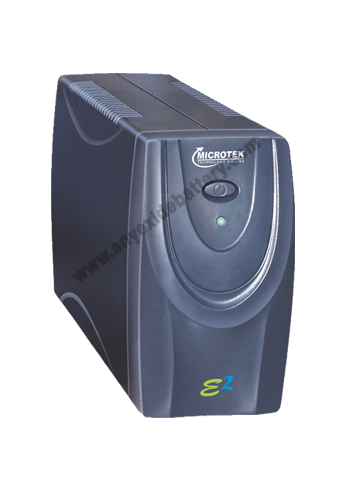

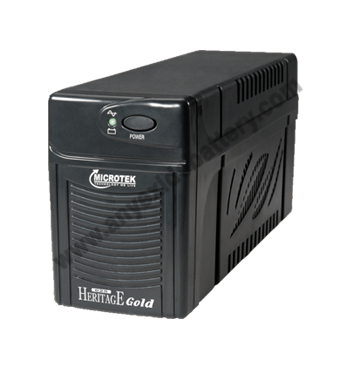

Features

• Excellent Voltage Regulation
• No Load Shutdown
• Sinewave Inverter/Generator Compatible
• Fast Battery Charging
• Battery Deep Discharge/Over Charge Protection
• Extended AVR Range of 145~300 volts
• Over Load/ Short Circuit Protection
• AVR : 145~300V AC
• Battery : 12V, 7.2AH
• Back-up : 10~20min. Approx.

Features

• AVR : 145~300V AC
• Battery : 12V, 7.2AH
• Back-up : 10~20min. Approx.
• Optimized SINEWAVE Performance
• No Load Shutdown
• Fast Battery Charging
• Extended AVR Range of 145~300 volts
• Over Load/ Short Circuit Protection
• Battery Deep Discharge/Over Charge Protection

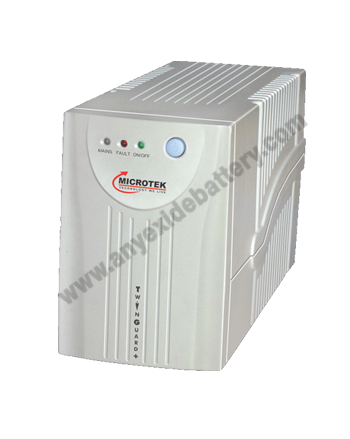

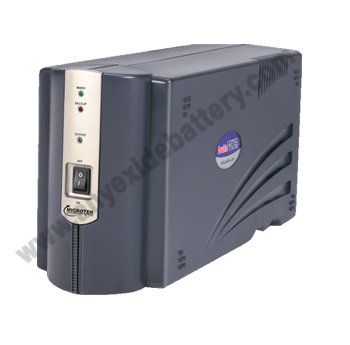

Features

• AVR : 135~300V AC
• Battery : 12V, 7.2AHx2
• Back-up(typ. 1 PC) : 25~50min. Approx.
• - Excellent Voltage Regulation
• No Load Shutdown
• Fast Battery Charging
• Battery Deep Discharge/Over Charge Protection
• Extended AVR Range of 135~300 volts
• Over Load/ Short Circuit Protection

Features

• AVR : 135~300V AC
• Battery : 12V, 7.2AHx2
• Back-up(typ. 2 PC) 15~25min. Approx.
• Back-up(typ. 1 PC) : 40~50min. Approx.
• Backup For Multi-computers
• Excellent Voltage Regulation
• Fast Battery Charging
• Battery Deep Discharge/Over Charge Protection
• Extended AVR Range of 135~300 volts
• Over Load/ Short Circuit Protection
• No Load Shutdown
• Smart Boost function for Low Input Voltage
• Smart Buck function for High Input Voltage

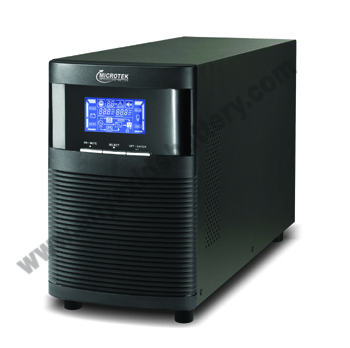

Features

• Capacity : 1KVA/800W
• Battery :
• DC Voltage : 36VDC(3Batt. 7.2H Inside)
  Charge Current : 0.7A
• Communication Interface : RS232; SNMP(optional)
• LED/LCD Indication : LCD Indications
• Noise Level : <45dB
• Dimensions Product (L*W*H) in mm : 400*145*220
• Net Weight Product (Kg.) : 13.9Kg.

• High frequency and double conversion online technology
• High end IGBT based.
• High end Micro Controller Based.
• Wide Input voltage range
• Advanced PFC Technology
• Advanced Battery Management
• Automatic Battery Charging in UPS off mode
• Short Circuit and overload protection
• Smart RS232 Communication with monitoring software
• SNMP card slot (optional)
• Over Temperature Protection.
• EMI / RFI noise filter
• LCD/LED Display simultaneously
• Specially designed to suit Indian power and environment conditions
• Generator Compatible(Supplying SInewave Voltage)
• Isolation Transformer (Optional)
• Over Temperature Protection.
• Different output Voltage settings.
• Output Frequency fixed at 50Hz or can be synchronized with Input Frequency.
• Static Bypass Enable or Disable.
• Outlets Programmable and non programmable.
• Protection from DC Fan failure.
• Inbuilt Over Voltage Cut-Off Device.

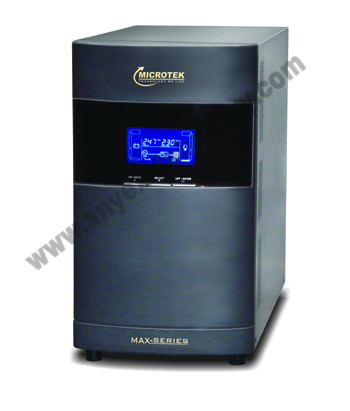

Features

• Capacity : 1KVA/800W
• Battery :
• DC Voltage : 36VDC
  Charge Current : 0.7A~06A
• Communication Interface : RS232; SNMP(optional)
• LED/LCD Indication : LCD Indications
• Noise Level : <45dB
• Dimensions Product (L*W*H) in mm : 285*145*220
• Net Weight Product (Kg.) : 4.08Kg.

• High frequency and double conversion online technology
• High end Micro Controller Based.
• Wide Input voltage range
• Advanced PFC Technology
• Advanced Battery Management
• Automatic Battery Charging in UPS off mode
• Short Circuit and overload protection
• Smart RS232 Communication with monitoring software
• SNMP card slot (optional)
• Over Temperature Protection.
• EMI / RFI noise filter
• LCD/LED Display simultaneously
• Specially designed to suit Indian power and environment conditions
• Generator Compatible(Supplying SInewave Voltage)
• Isolation Transformer (Optional)
• Over Temperature Protection.
• Different output Voltage settings.
• Output Frequency fixed at 50Hz or can be synchronized with Input Frequency.
• Static Bypass Enable or Disable.
• Outlets Programmable and non programmable.
• Protection from DC Fan failure.

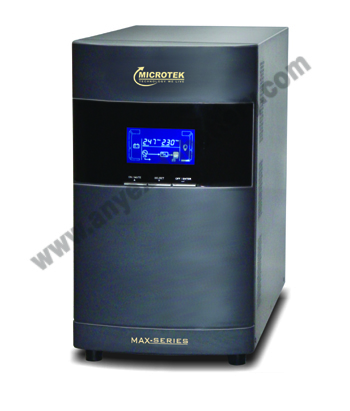

Features

• Capacity : 2KVA/1600W
• Battery :
• DC Voltage : 72VDC
  Charge Current : 0.7A~08A
• Communication Interface : RS232; SNMP(optional)
• LED/LCD Indication : LCD Indications
• Noise Level : <45dB
• Dimensions Product (L*W*H) in mm : 421*190*336
• Net Weight Product (Kg.) : 12.10Kg.

• High frequency and double conversion online technology
• High end Micro Controller Based.
• Wide Input voltage range
• Advanced PFC Technology
• Advanced Battery Management
• Automatic Battery Charging in UPS off mode
• Short Circuit and overload protection
• Smart RS232 Communication with monitoring software
• SNMP card slot (optional)
• Over Temperature Protection.
• EMI / RFI noise filter
• LCD/LED Display simultaneously
• Specially designed to suit Indian power and environment conditions
• Generator Compatible(Supplying SInewave Voltage)
• Isolation Transformer (Optional)
• Over Temperature Protection.
• Different output Voltage settings.
• Output Frequency fixed at 50Hz or can be synchronized with Input Frequency.
• Static Bypass Enable or Disable.
• Outlets Programmable and non programmable.
• Protection from DC Fan failure.

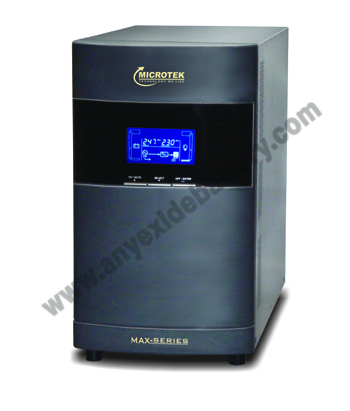

Features

• Capacity : 2KVA/2400W
• Battery :
• DC Voltage : 72VDC
  Charge Current : 0.7A~08A
• Communication Interface : RS232; SNMP(optional)
• LED/LCD Indication : LCD Indications
• Noise Level : <45dB
• Dimensions Product (L*W*H) in mm : 421*190*336
• Net Weight Product (Kg.) : 12.52Kg.

• High frequency and double conversion online technology
• High end Micro Controller Based.
• Wide Input voltage range
• Advanced PFC Technology
• Advanced Battery Management
• Automatic Battery Charging in UPS off mode
• Short Circuit and overload protection
• Smart RS232 Communication with monitoring software
• SNMP card slot (optional)
• Over Temperature Protection.
• EMI / RFI noise filter
• LCD/LED Display simultaneously
• Specially designed to suit Indian power and environment conditions
• Generator Compatible(Supplying SInewave Voltage)
• Isolation Transformer (Optional)
• Over Temperature Protection.
• Different output Voltage settings.
• Output Frequency fixed at 50Hz or can be synchronized with Input Frequency.
• Static Bypass Enable or Disable.
• Outlets Programmable and non programmable.
• Protection from DC Fan failure.

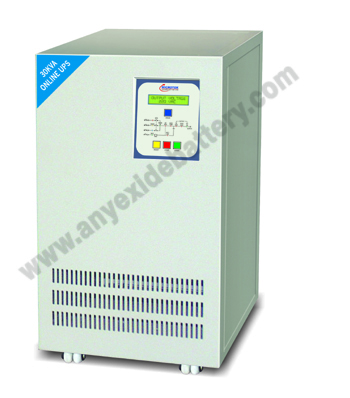

Features

• Capacity : 5KVA to 30KVA
• Technology : Double Conversion High Freq. switching PWM, using IGBT's
• Battery :
• DC Voltage : 180/360 VDC
• Mimic Control Panel : LED for UPS status and LCD for Voltage, Current & Frequency
• Audible Alarm : For Battery Low/DC High/Output High/Overload
• Communication Interface : RS232; SNMP(optional)
• Optional : Hot Stand By

• True Online Double Conversion Technology
• High end IGBT based
• High end Micro Controller
• Automatic battery charging in UPS off mode
• Wide Input voltage range
• Advanced Battery Management
• Short Circuit and overload protection
• Parallel Redundant / Hot Standby. (optional)
• Galvanic Isolation
• 1 Phase in ~ 1 Phase out (upto 10KVA)
• 3 Phase in ~ 1 Phase out (upto 30KVA)
• Specially Designed to Suit Indian Power and Environment Conditions
• Generator Compatible(Supplying SInewave Voltage)
• Isolation Transformer (Optional)
• Over Temperature Protection.

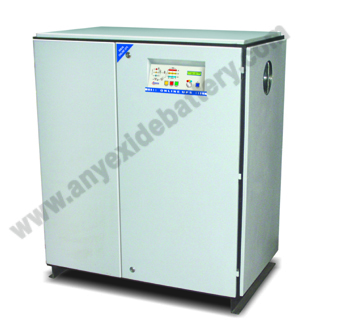

Features

• Capacity : 5KVA to 30KVA
• Technology : Double Conversion High Freq. switching PWM, using IGBT's
• Battery :
• DC Voltage : 360V DC
• Mimic Control Panel : LED for UPS status and LCD for Voltage, Current & Frequency
• Audible Alarm : For Battery Low/DC High/Output High/Overload
• Communication Interface : RS232; SNMP(optional)
• Optional : Hot Stand By

• True Online Double Conversion Technology
• High end IGBT based
• High end Micro Controller
• Automatic battery charging in UPS off mode
• Wide Input voltage range
• Advanced Battery Management
• Short Circuit and overload protection
• Hot Standby. (optional)
• Galvanic Isolation
• 3 Phase in ~ 3 Phase out
• Specially Designed to Suit Indian Power and Environment Conditions
• Generator Compatible
• Isolation Transformer (Optional)
• Over Temperature Protection.
